Redstone 550R2
Two up, anywhere
Rime Silver
Coming soon
- Power
- 48hp
- Torque
- 46Nm
- Engine
- 498.4cc

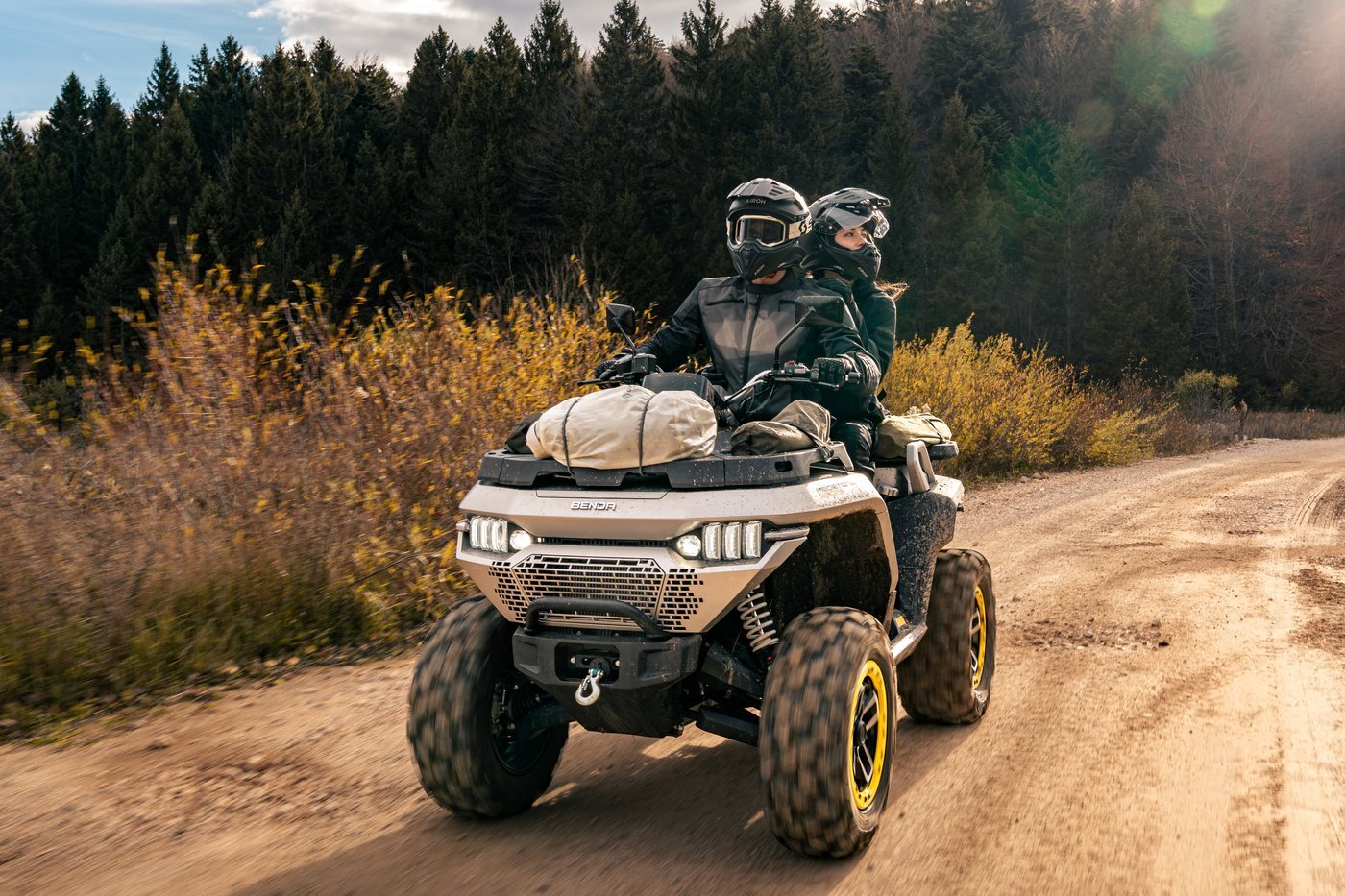

Room For One More
The same quad.
One more seat.

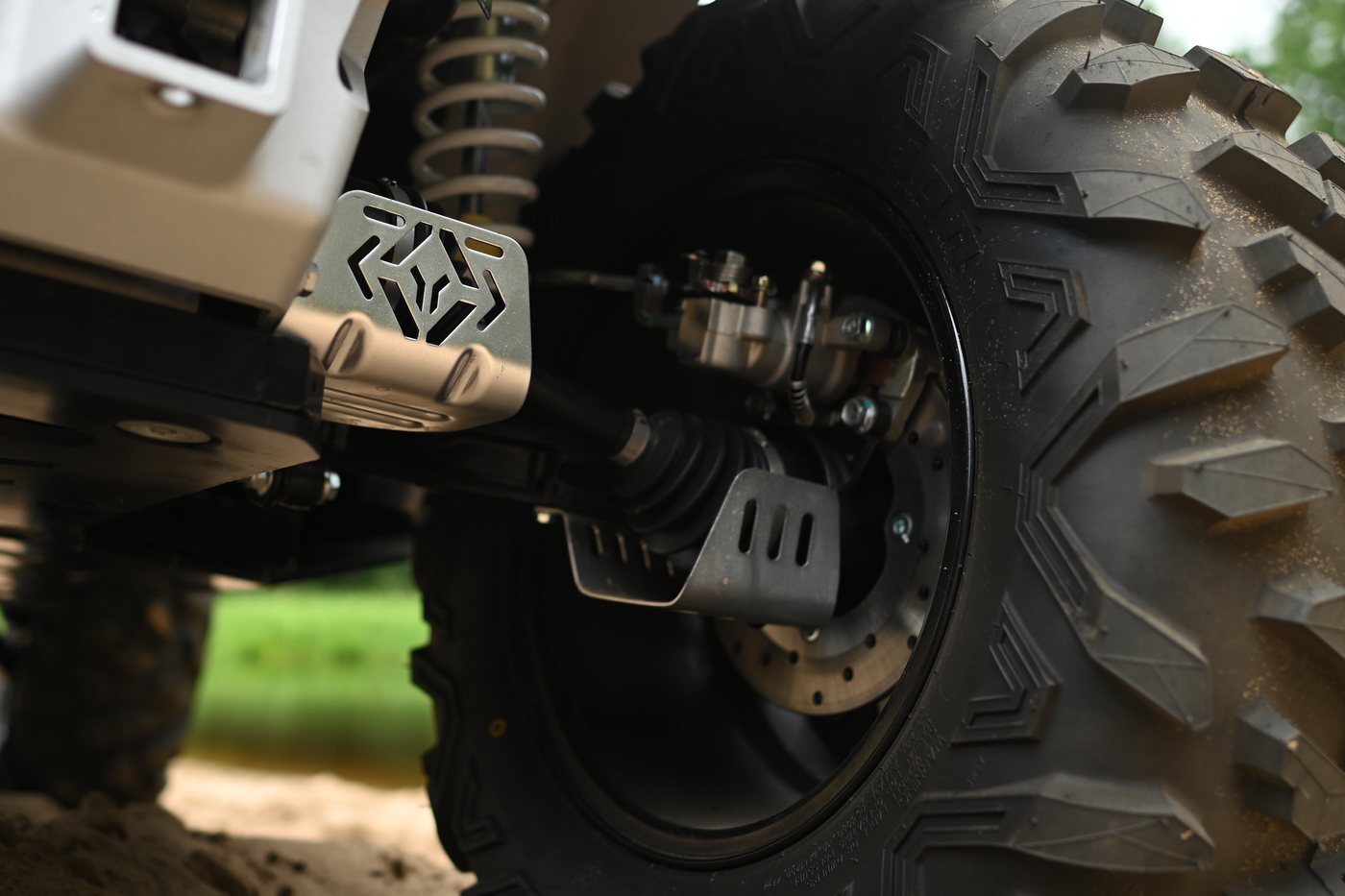

A 498cc V-twin, selectable 2WD/4WD with a diff-lock, and 900kg on a braked hitch — the 550 with a passenger seat and 200mm more wheelbase under it. Hydraulic discs at both ends with ABS, on 14in. alloy beadlock rims, so the second person on board changes what you can carry and not what you can cross.
Features
Dual A-arms and 230mm of travel at the front, a double A-arm rear, and 305mm of ground clearance between the two of you and whatever you are riding over.
Technical data
Every published figure for the Redstone 550R2 — engine, dimensions, chassis and brakes — plus the equipment fitted as standard.
Full Redstone 550R2 specifications
Engine
- Type
- V2, 4-stroke SOHC, liquid-cooled
- Displacement
- 498.4cc
- Max. power
- 48hp
- Max. torque
- 46Nm/5500rpm
- Fuel System/Cooling
- EFI/Liquid
- Transmission
- CVT L/H/N/R/P
- Drive Train
- Selectable 2WD/4WD With Diff-Lock
Suspension
- Front Suspension
- Dual A-arm with sway bar, travel 230mm
- Front Shocks
- Adjustable Gas Shock Absorber
- Rear Suspension
- Double A-arm
- Rear Shocks
- Adjustable Gas Shock Absorber
- Front Tires
- 26×9-14in
- Rear Tires
- 26×11-14in
- Wheels
- 14in. alloy beadlock
- Brakes
- Hydraulic disc brakes front and rear, ABS
Dimensions
- Length
- 2,365mm
- Width
- 1,245mm
- Height
- 1,450mm
- Wheelbase
- 1,500mm
- Ground Clearance
- 305mm
- Estimated Dry Weight
- 425kg
- Braked Towing Capacity
- 900kg
- Fuel Tank Capacity
- 30L
- Seats
- 2
- Seat Height
- 950mm
Standard equipment
Brakes
- Brakes: Hydraulic disc brakes front and rear, ABS
Suspension & chassis
- Front Suspension: Dual A-arm with sway bar, travel 230mm
- Rear Suspension: Double A-arm
- Front Shocks: Adjustable Gas Shock Absorber
- Rear Shocks: Adjustable Gas Shock Absorber
Wheels & tyres
- Front Tires: 26×9-14in
- Rear Tires: 26×11-14in
- Wheels: 14in. alloy beadlock
Drivetrain
- Transmission: CVT L/H/N/R/P
- Drive Train: Selectable 2WD/4WD With Diff-Lock
- Fuel System/Cooling: EFI/Liquid
Standard features

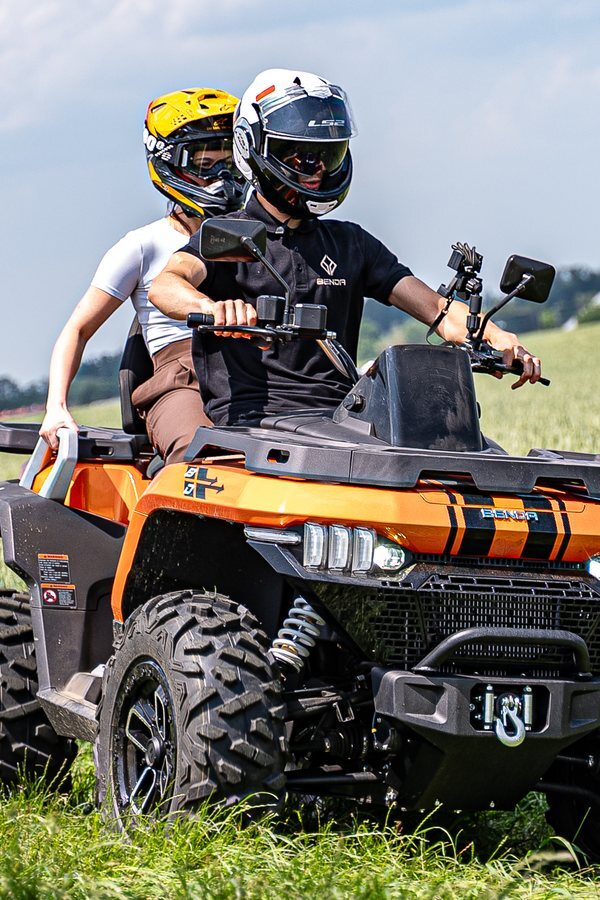

- Room for Two: Seats two, on a 1,500mm wheelbase and a 950mm seat height, at 425kg dry.

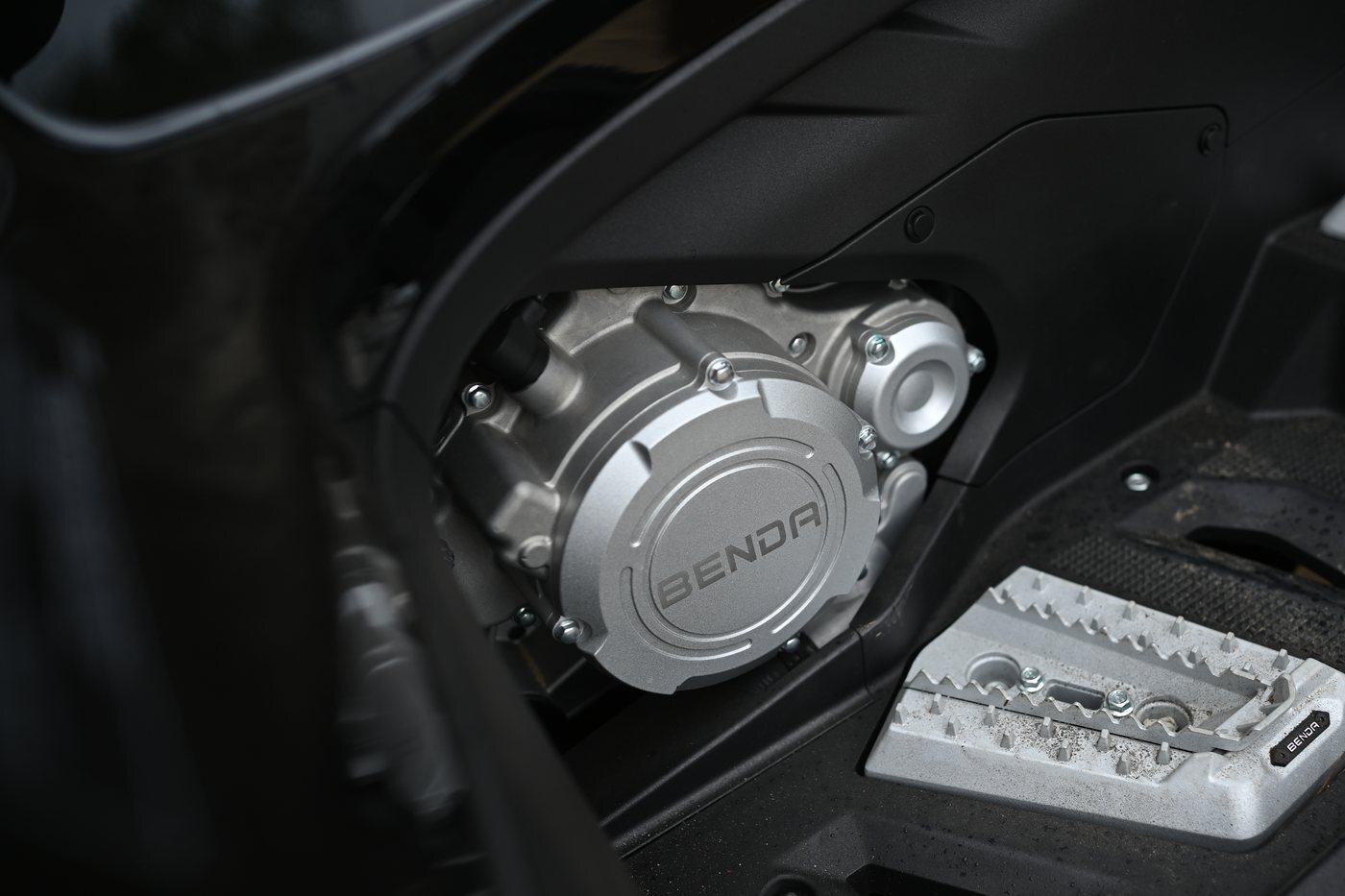

- 48hp V-Twin: A 498.4cc liquid-cooled SOHC V-twin making 48hp and 46Nm at 5,500rpm, fed by EFI, driving through a CVT with low, high, neutral, reverse and park.

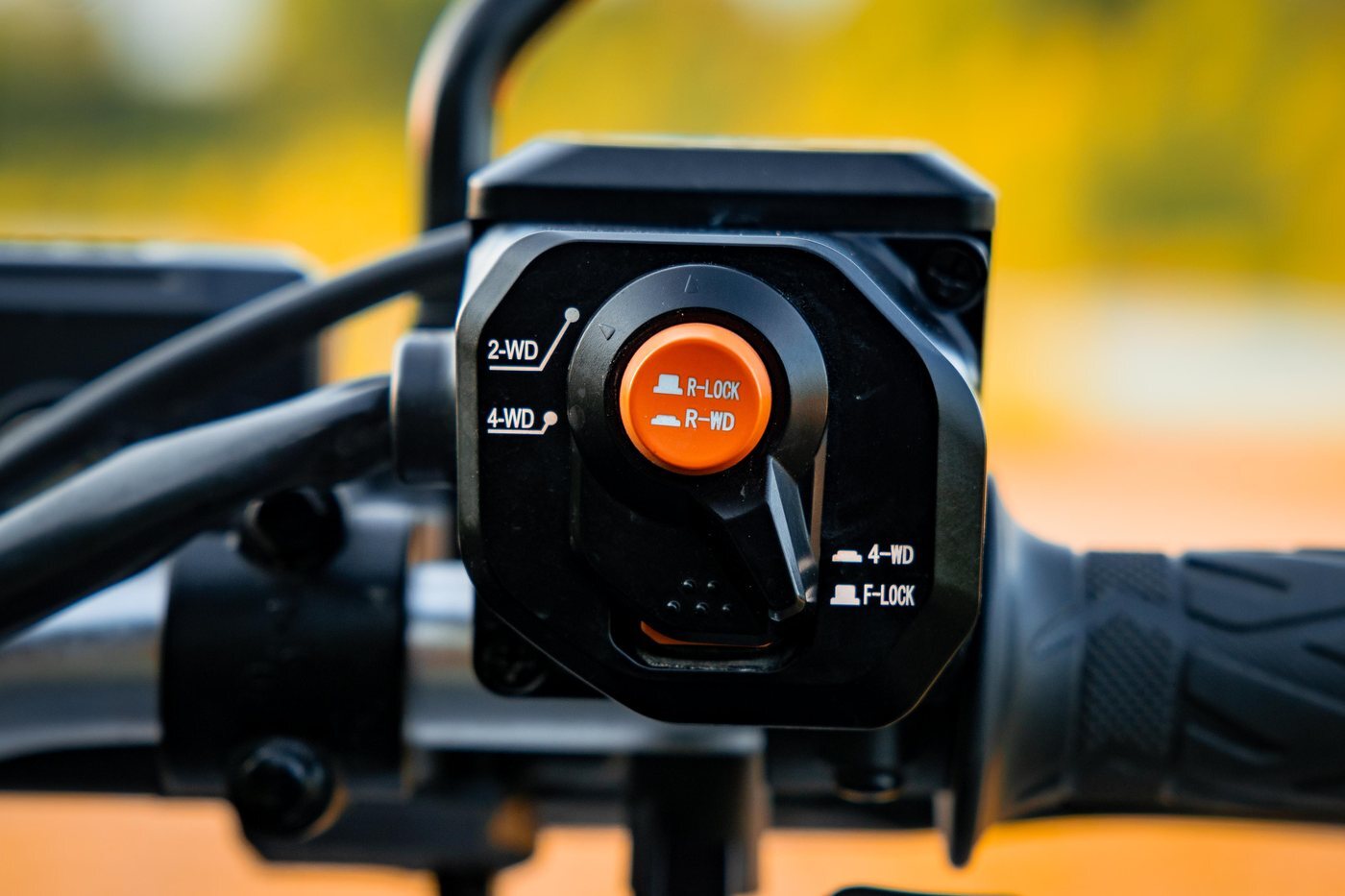

- Selectable 2WD/4WD with Diff-Lock: Two-wheel drive for the run out, four-wheel drive with the differential locked when the ground stops cooperating.

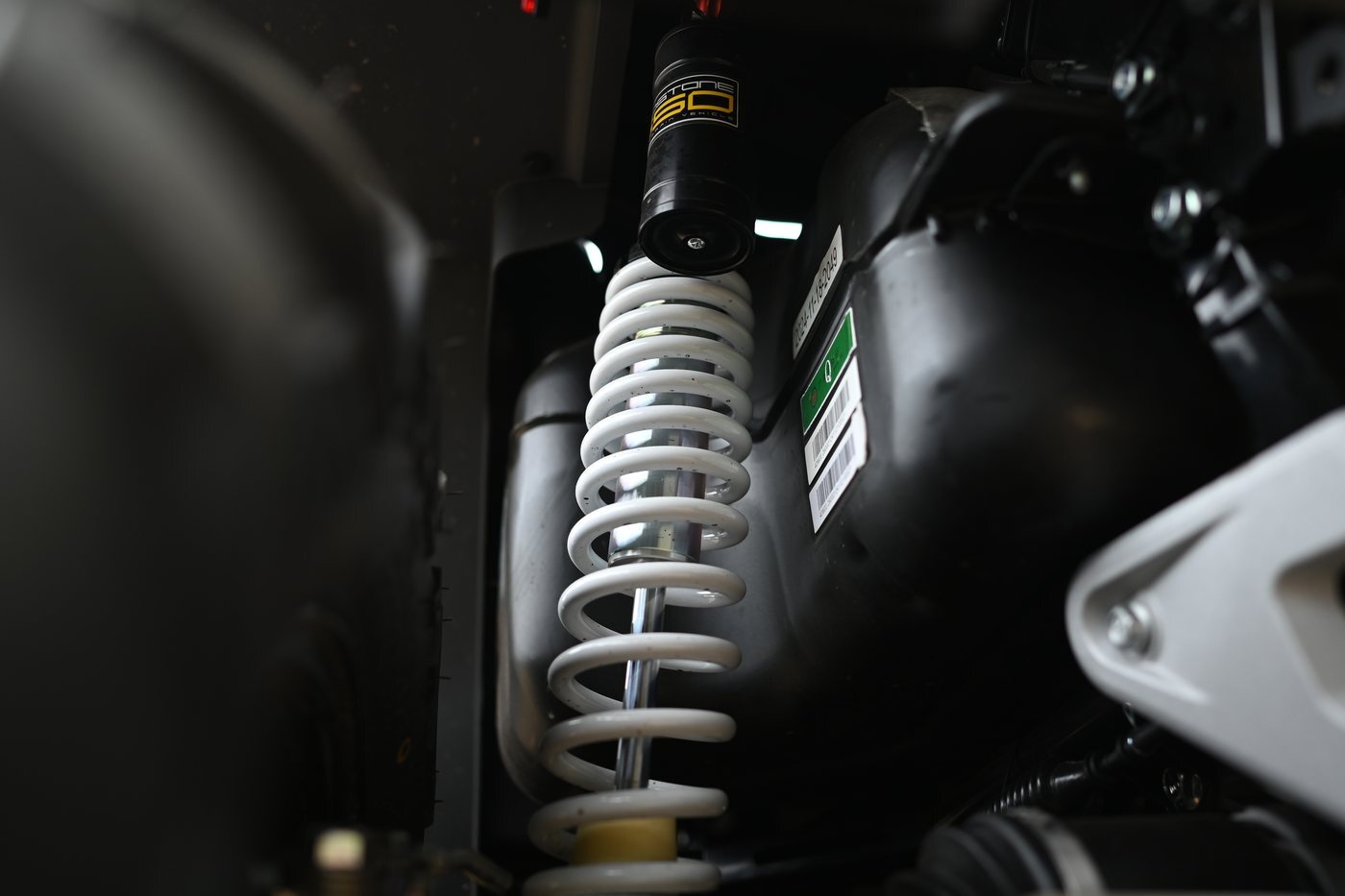

- Adjustable at Both Ends: A dual A-arm front end with a sway bar and 230mm of travel, a double A-arm rear, and adjustable gas shock absorbers front and rear — with 305mm of ground clearance underneath.

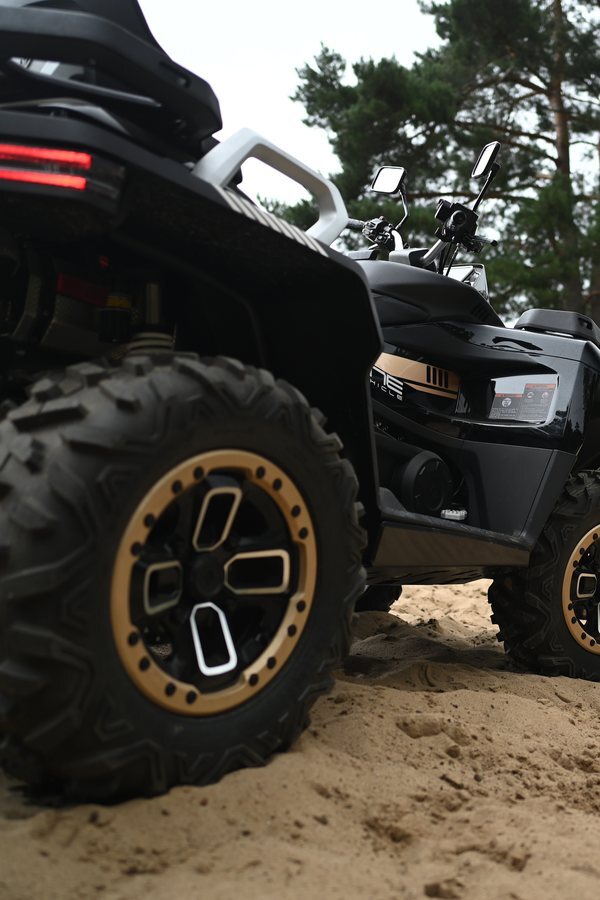

- Beadlock Wheels, Discs and ABS: 26-inch tyres on 14-inch alloy beadlock wheels, with hydraulic disc brakes front and rear and ABS.

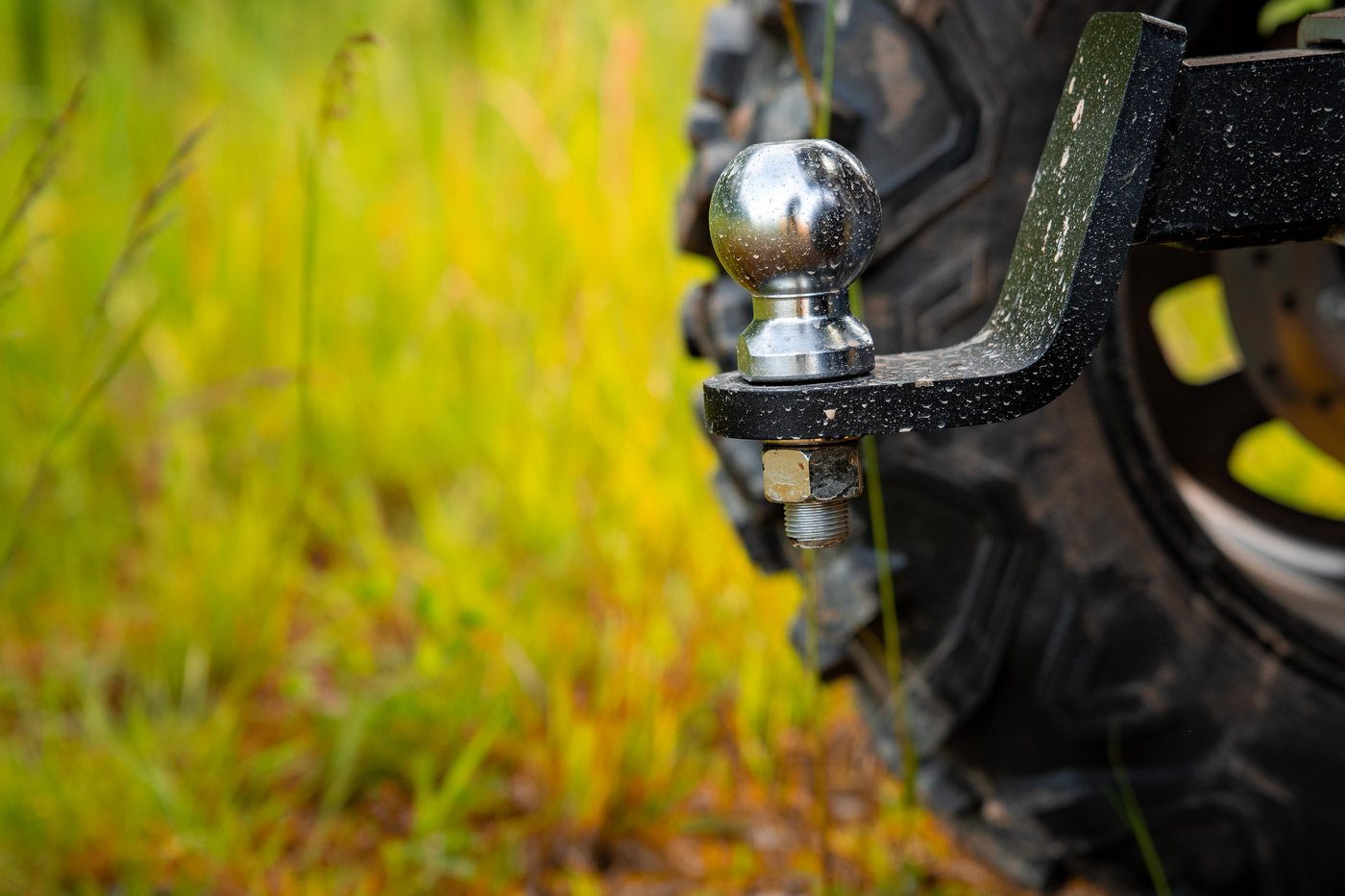

- Rated to Tow 900kg Braked: 900kg braked towing capacity, on a 30-litre tank.
