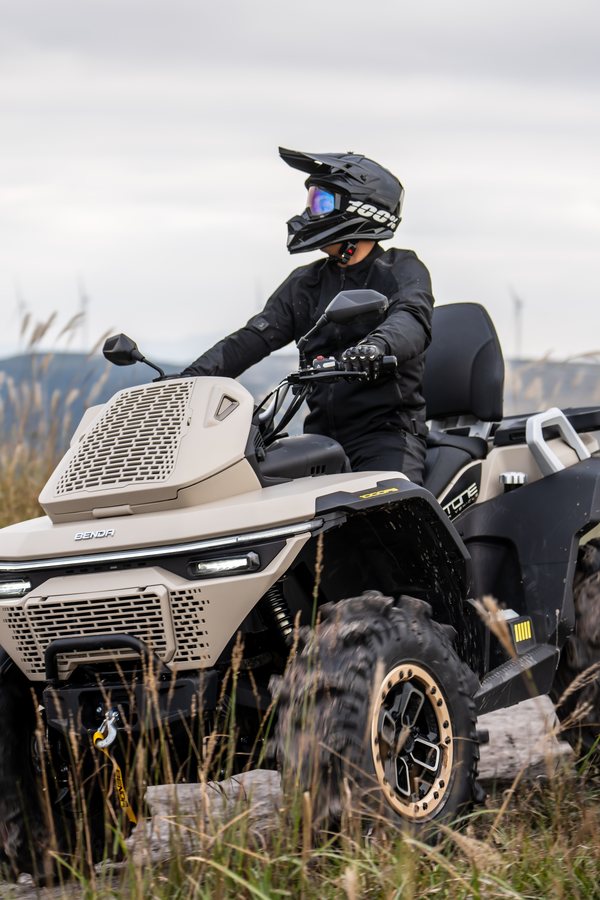

Redstone 1000 Mud
Built for the mud
Desert Yellow
Coming soon
- Power
- 102hp
- Torque
- 92Nm
- Engine
- 997.1cc

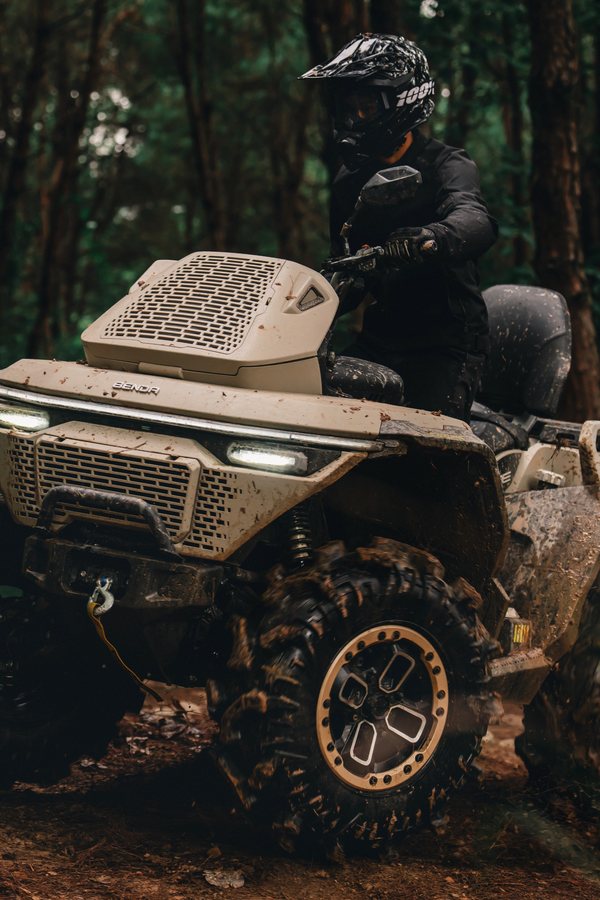

Made For The Mess
Built for the bog.
The 997cc V-twin through a CVT with low, high, neutral, reverse and park, selectable 2WD/4WD with a locking differential, on 30-inch tyres with 365mm of ground clearance under it.
Features

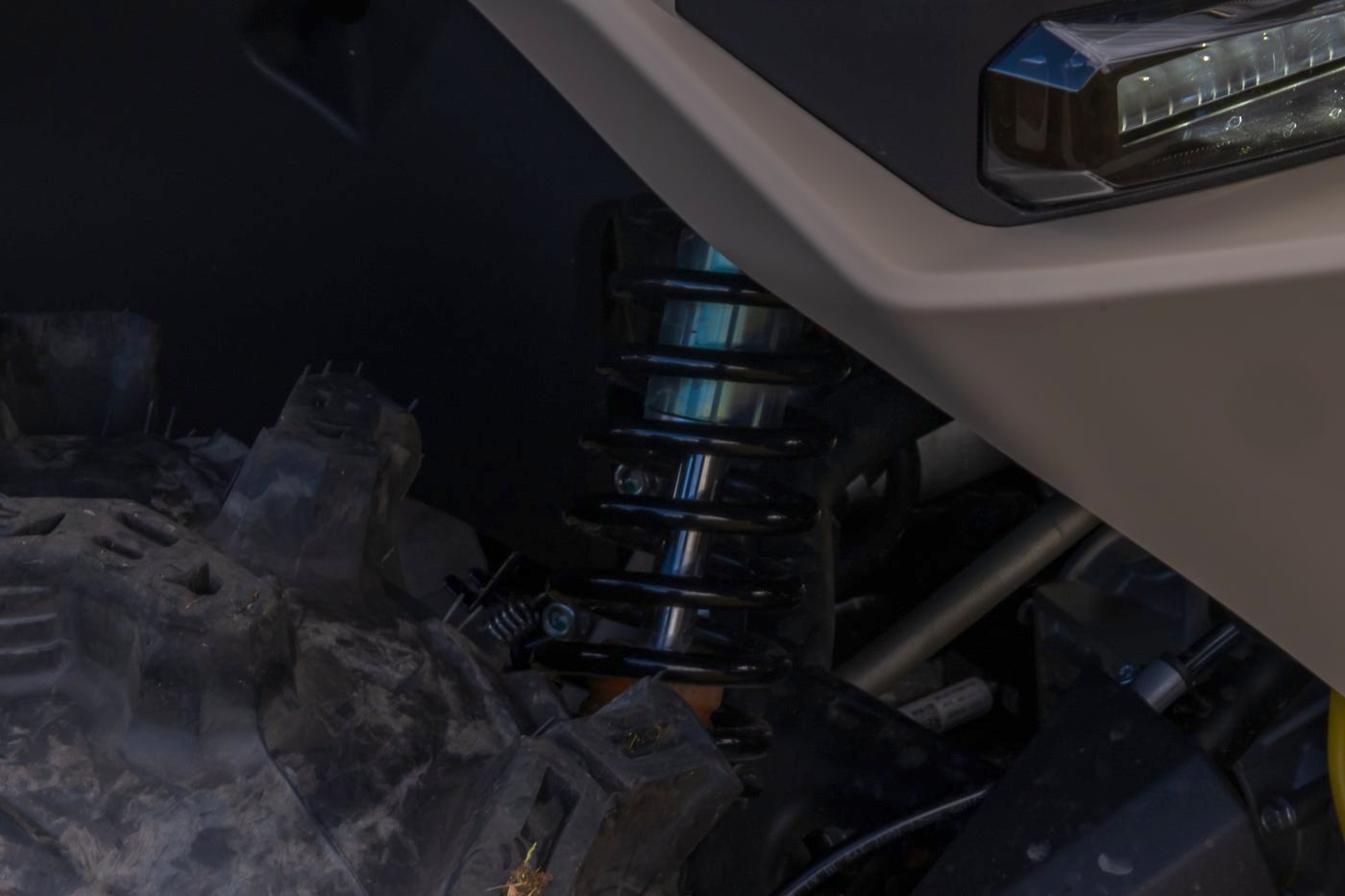

Dual A-arms with a sway bar at the front, an independent trailing arm at the rear, adjustable gas shocks at all four corners and dual 220mm discs — with 792kg of towing behind it.
Technical data
Every published figure for the Redstone 1000 Mud — engine, dimensions, chassis and brakes — plus the equipment fitted as standard.
Full Redstone 1000 Mud specifications
Engine
- Type
- V2, 4-stroke SOHC, liquid-cooled
- Displacement
- 997.1cc
- Max. power
- 102hp
- Max. torque
- 92Nm/6500rpm
- Fuel System/Cooling
- EFI/Liquid
- Transmission
- CVT L/H/N/R/P
- Drive Train
- Selectable 2WD/4WD With Diff-Lock
Suspension
- Front Suspension
- Dual A-arm with sway bar, travel 180mm
- Front Shocks
- Adjustable Gas Shock Absorber
- Rear Suspension
- Independent torsional trailing arm, travel 230mm
- Rear Shocks
- Adjustable Gas Shock Absorber
- Front Tires
- 30×9-14in
- Rear Tires
- 30×11-14in
- Wheels
- 14in. aluminium
- Brakes
- Dual 220mm disc brakes
Dimensions
- Length
- 2,370mm
- Width
- 1,280mm
- Height
- 1,520mm
- Wheelbase
- 1,500mm
- Ground Clearance
- 365mm
- Estimated Dry Weight
- 465kg
- Towing Capacity
- 792kg
- Fuel Tank Capacity
- 30L
- Seats
- 1
- Seat Height
- 1,030mm
Standard equipment
Brakes
- Brakes: Dual 220mm disc brakes
Suspension & chassis
- Front Suspension: Dual A-arm with sway bar, travel 180mm
- Rear Suspension: Independent torsional trailing arm, travel 230mm
- Front Shocks: Adjustable Gas Shock Absorber
- Rear Shocks: Adjustable Gas Shock Absorber
Wheels & tyres
- Front Tires: 30×9-14in
- Rear Tires: 30×11-14in
- Wheels: 14in. aluminium
Drivetrain
- Transmission: CVT L/H/N/R/P
- Drive Train: Selectable 2WD/4WD With Diff-Lock
- Fuel System/Cooling: EFI/Liquid
Standard features

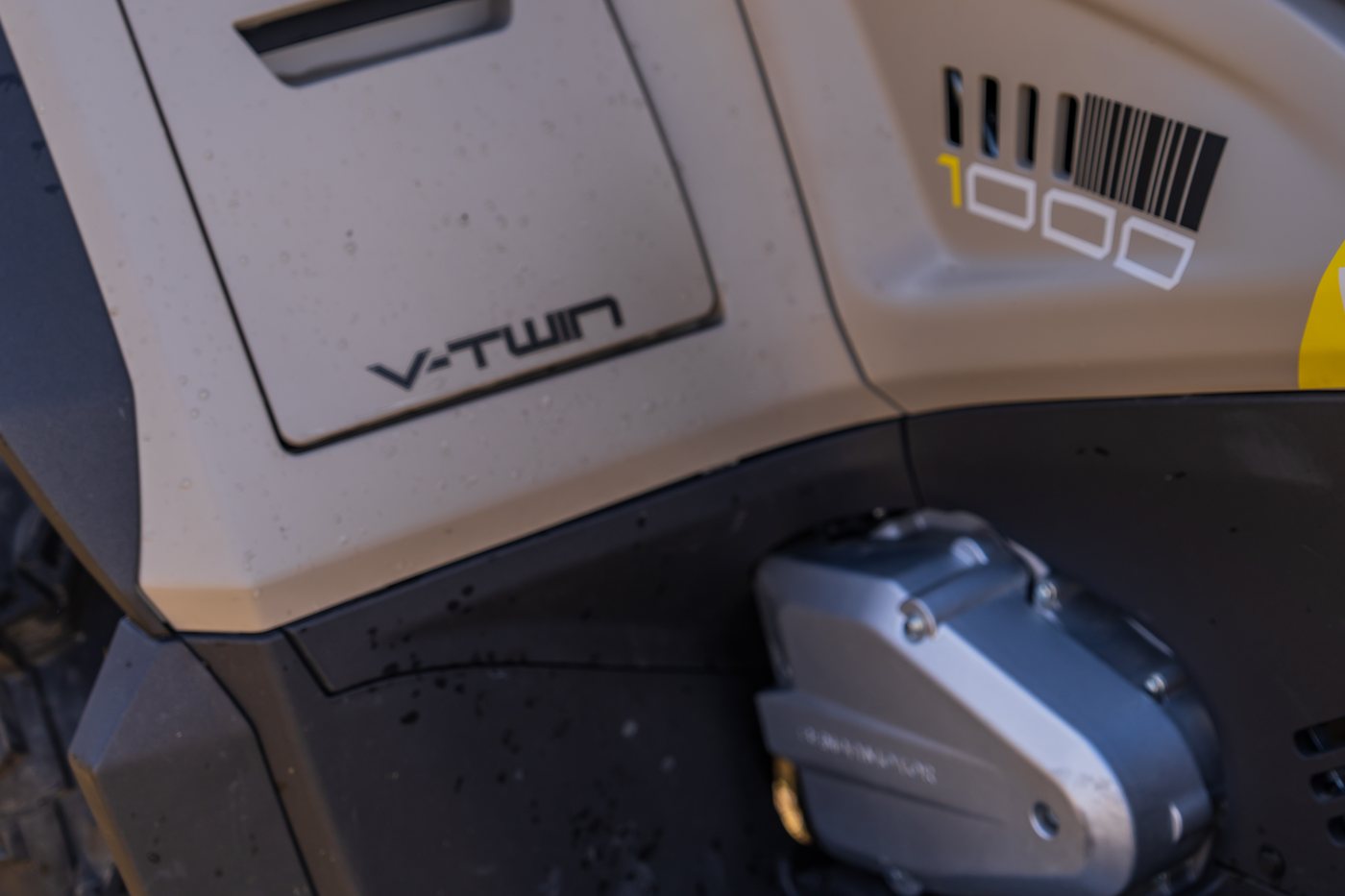

- 102hp V-Twin: A 997.1cc liquid-cooled SOHC V-twin making 102hp and 92Nm at 6,500rpm, fed by EFI, through a CVT with low, high, neutral, reverse and park.

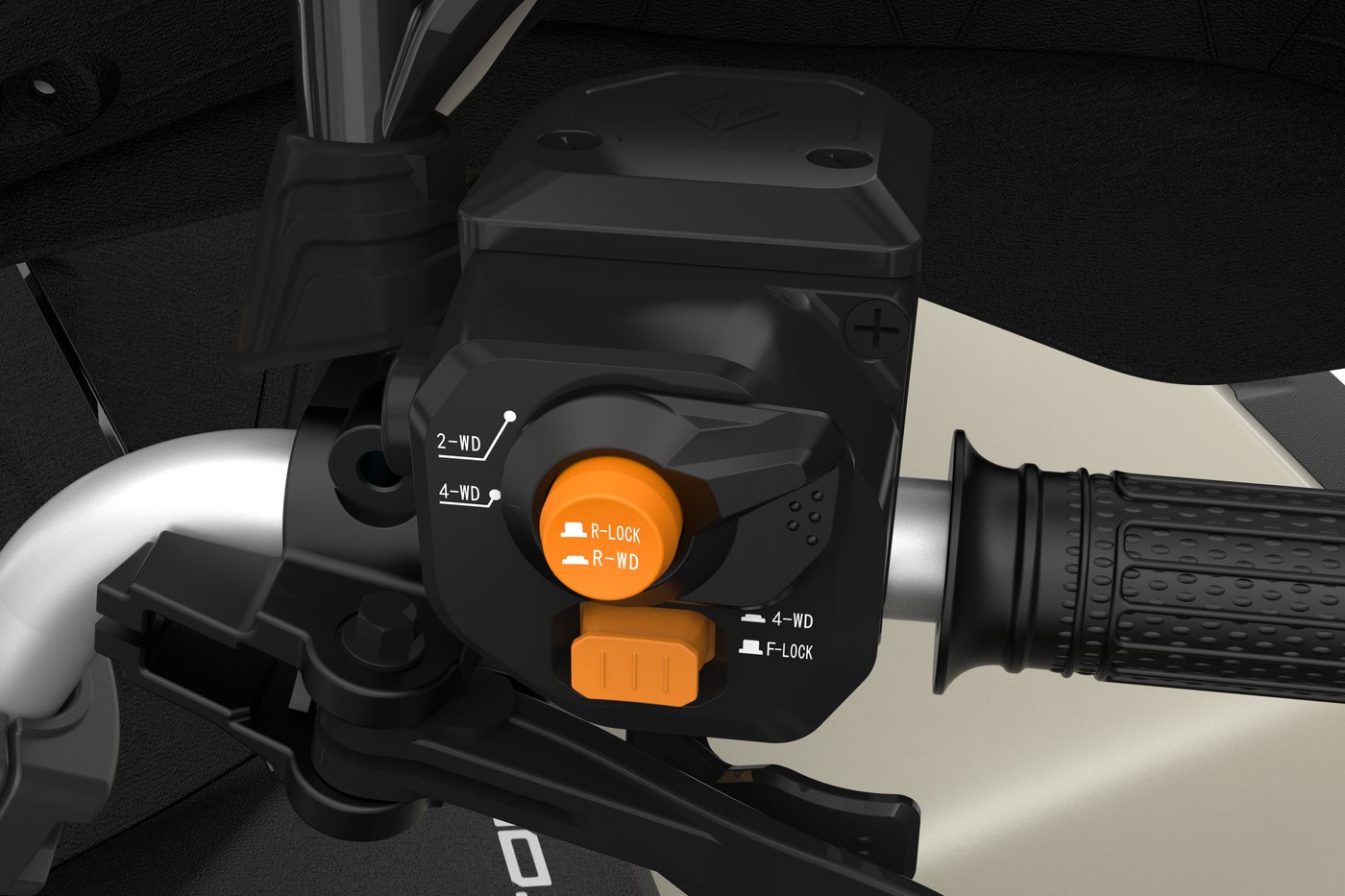

- Selectable 2WD/4WD with Diff-Lock: Drive both wheels or all four with the differential locked, depending on what is under you.

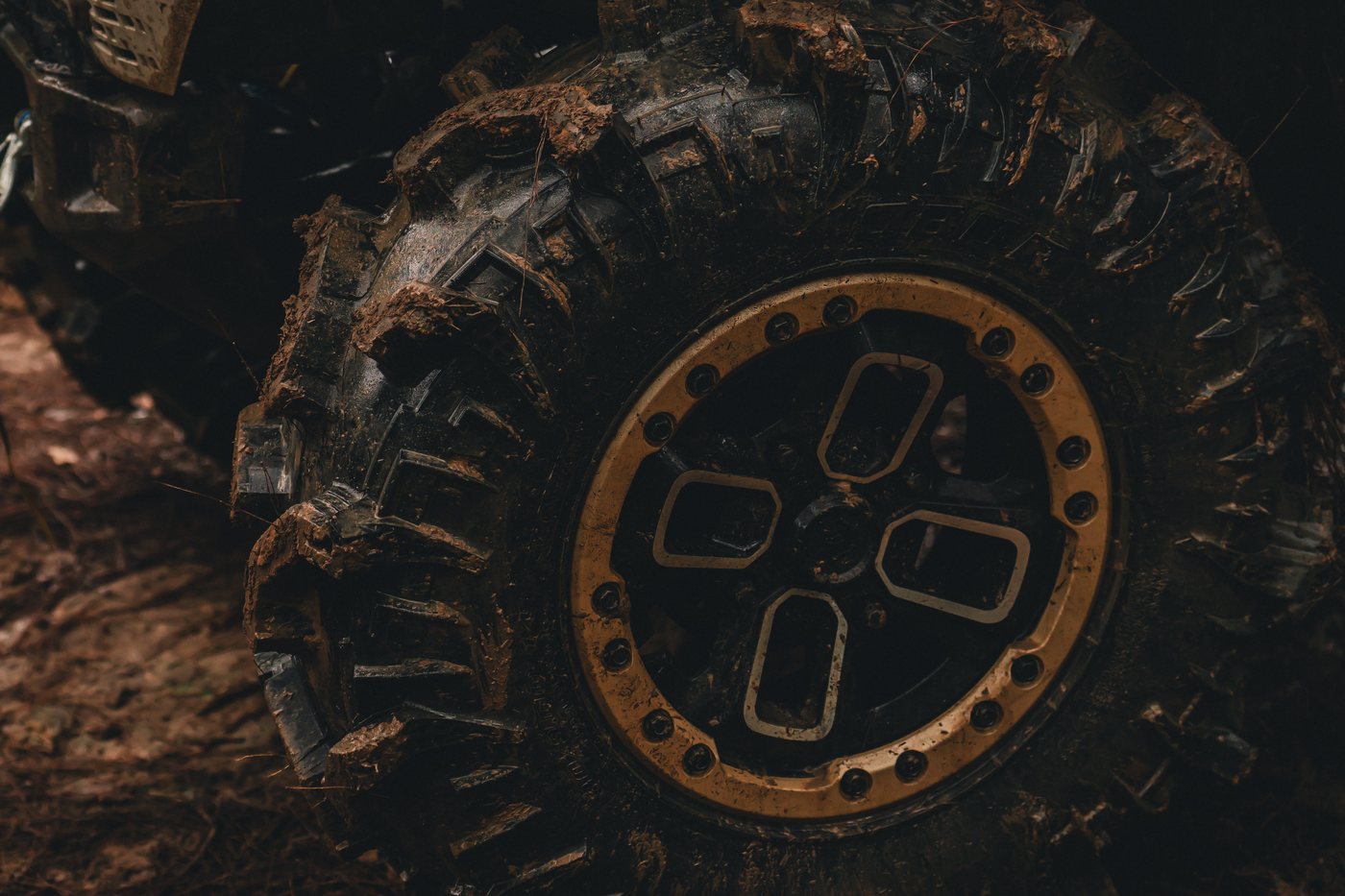

- 30-inch Tyres, 365mm of Clearance: 30-inch tyres front and rear on 14-inch aluminium wheels, 365mm of ground clearance and a 1,030mm seat height — the machine sits high and stays there.
- Long-travel Suspension: A dual A-arm front end with a sway bar and 180mm of travel, an independent torsional trailing arm at the rear with 230mm, and adjustable gas shock absorbers at both ends. Dual 220mm disc brakes.

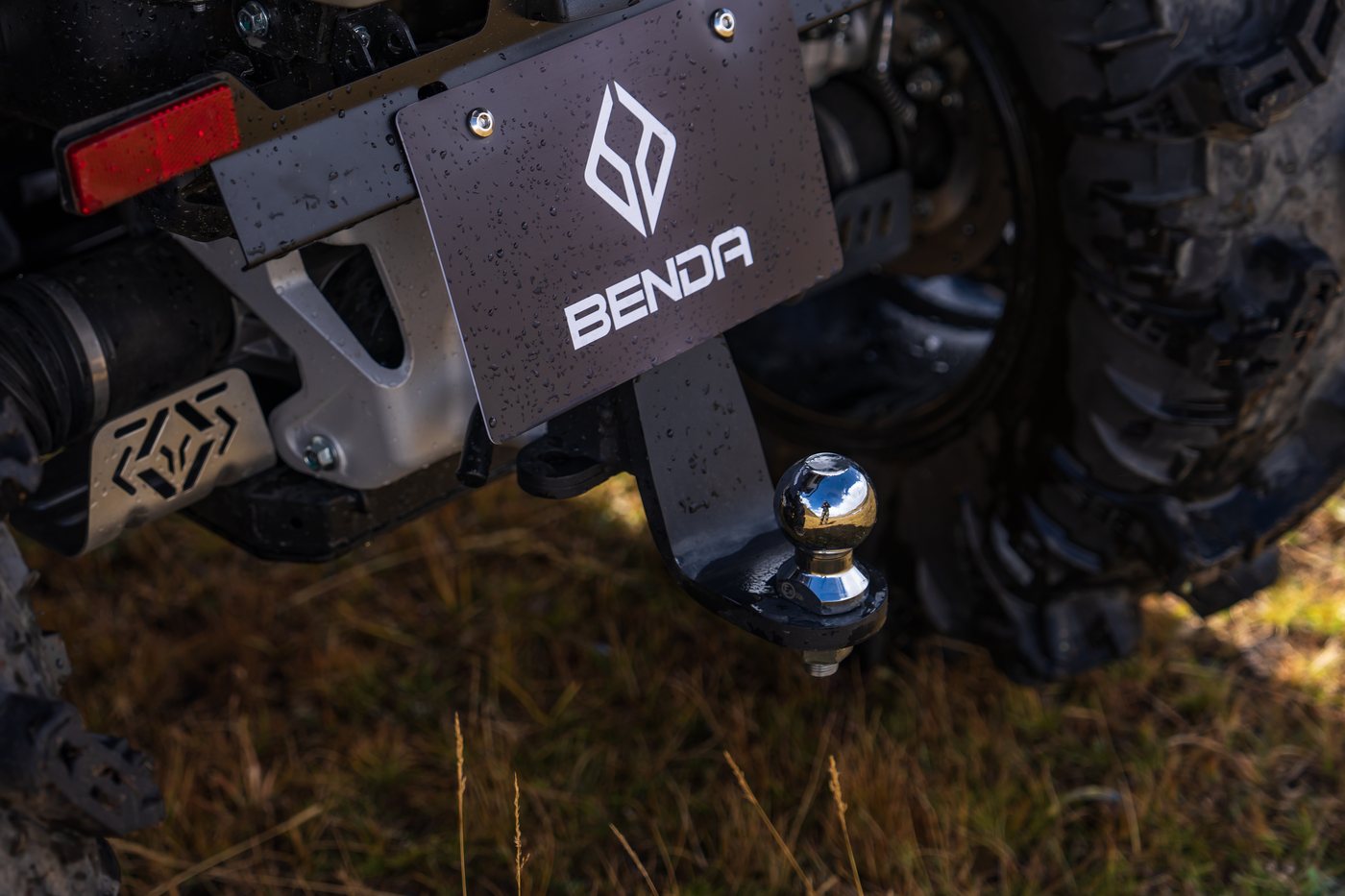

- 792kg of Towing: Rated to tow 792kg, with a 30-litre tank on a 1,500mm wheelbase, at 465kg dry.
Which BENDA is right for you?
Compare by
Redstone 550R2
Coming soon
- CVT
- 2WD/4WD
- ABS
- 48 hp
- Maximum power
- 46 Nm
- Maximum torque
- 498.4 cc
- Engine capacity
Redstone 1000R2
Coming soon
- CVT
- 2WD/4WD
- ABS
- 102 hp
- Maximum power
- 92 Nm
- Maximum torque
- 997.1 cc
- Engine capacity
Redstone 1000 Mud
Coming soon
- CVT
- 2WD/4WD
- 102 hp
- Maximum power
- 92 Nm
- Maximum torque
- 997.1 cc
- Engine capacity

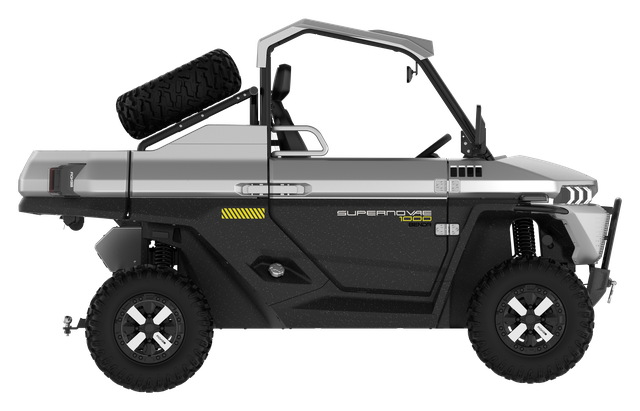

Supernovae 1000
Coming soon
- CVT
- 2WD/4WD
- 98 hp
- Maximum power
- 92 Nm
- Maximum torque
- 1000 cc
- Engine capacity

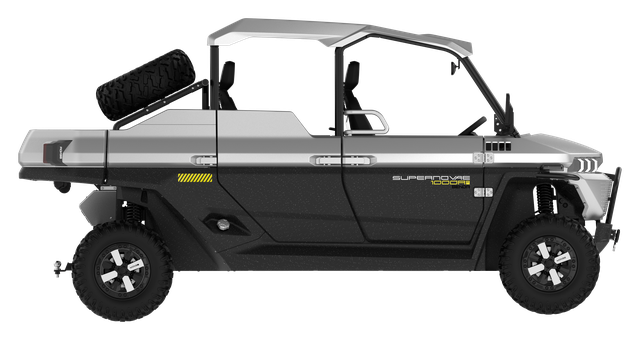

Supernovae 1000R2
