Ready to ride?
Talk to us about the Redstone 550 — we will come back with a state-accurate ride-away price.
Redstone 550
Coming soon
- CVT
- 2WD/4WD
- ABS
- 48 hp
- Maximum power
- 46 Nm
- Maximum torque
- 498.4 cc
- Engine capacity

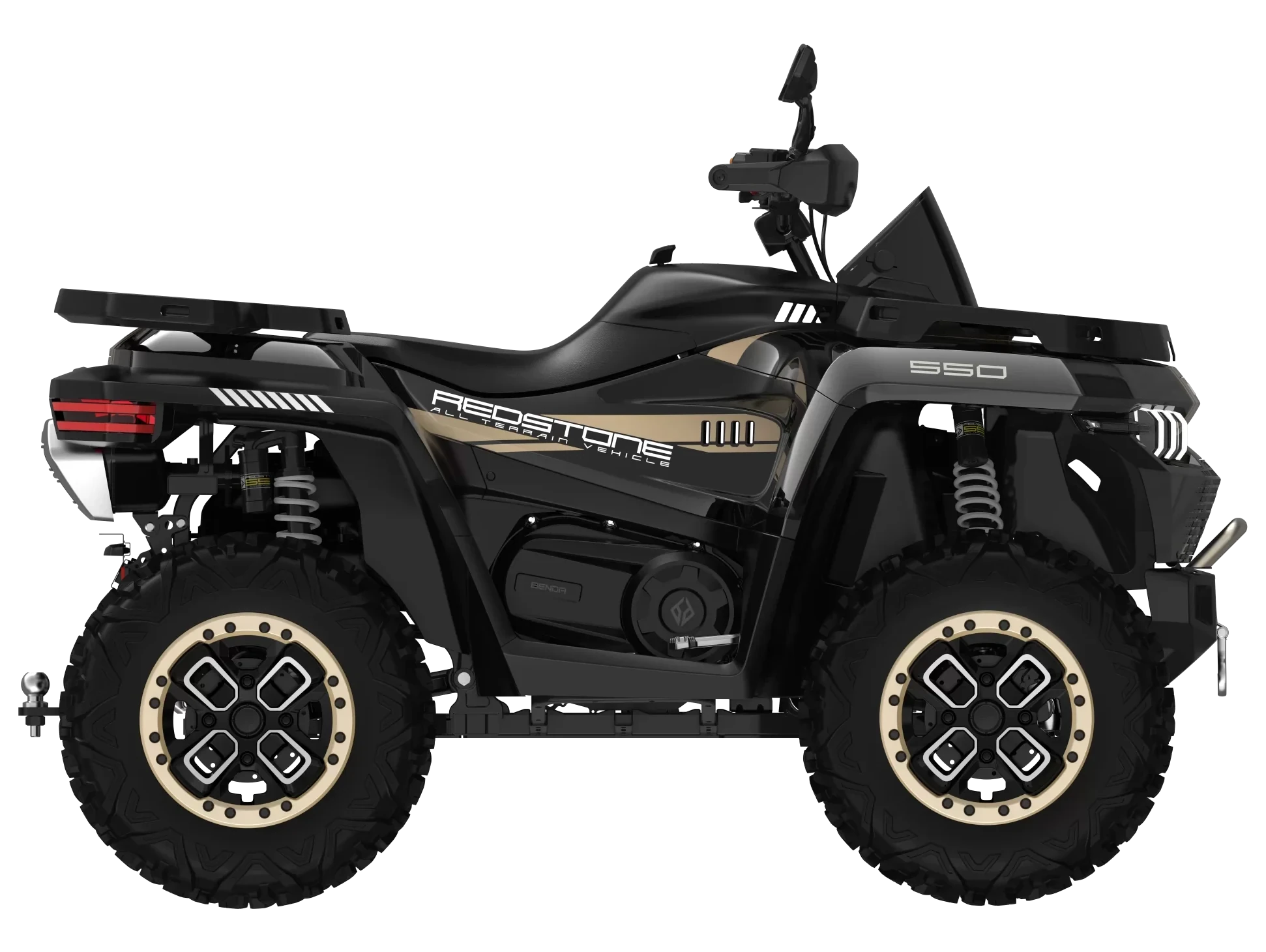

Redstone 550
Joy in every task
Rime Silver
Coming soon
- Power
- 48hp
- Torque
- 46Nm
- Engine
- 498.4cc
Where The Road Ends
48 horsepower.
And a tow hitch.

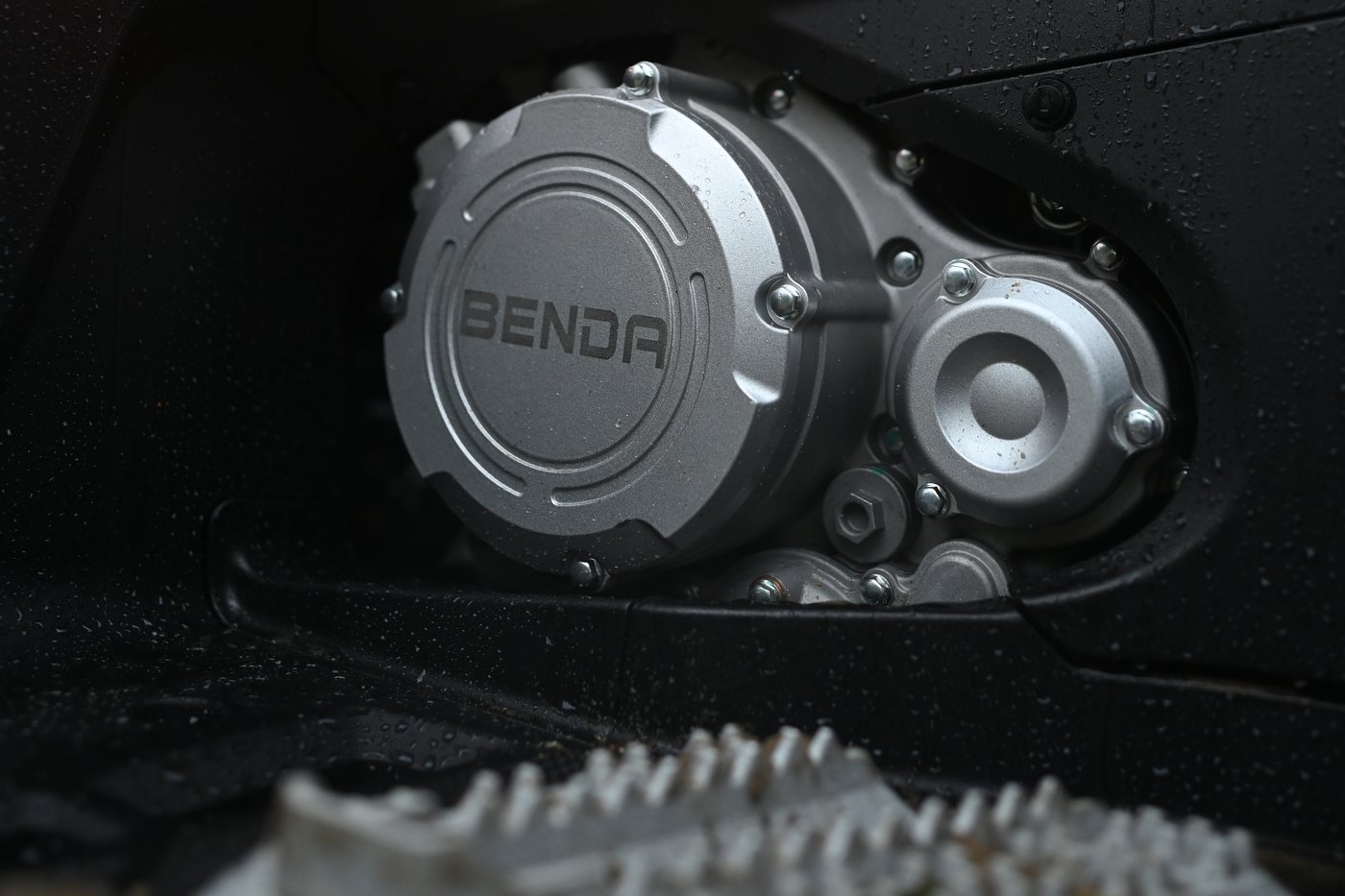

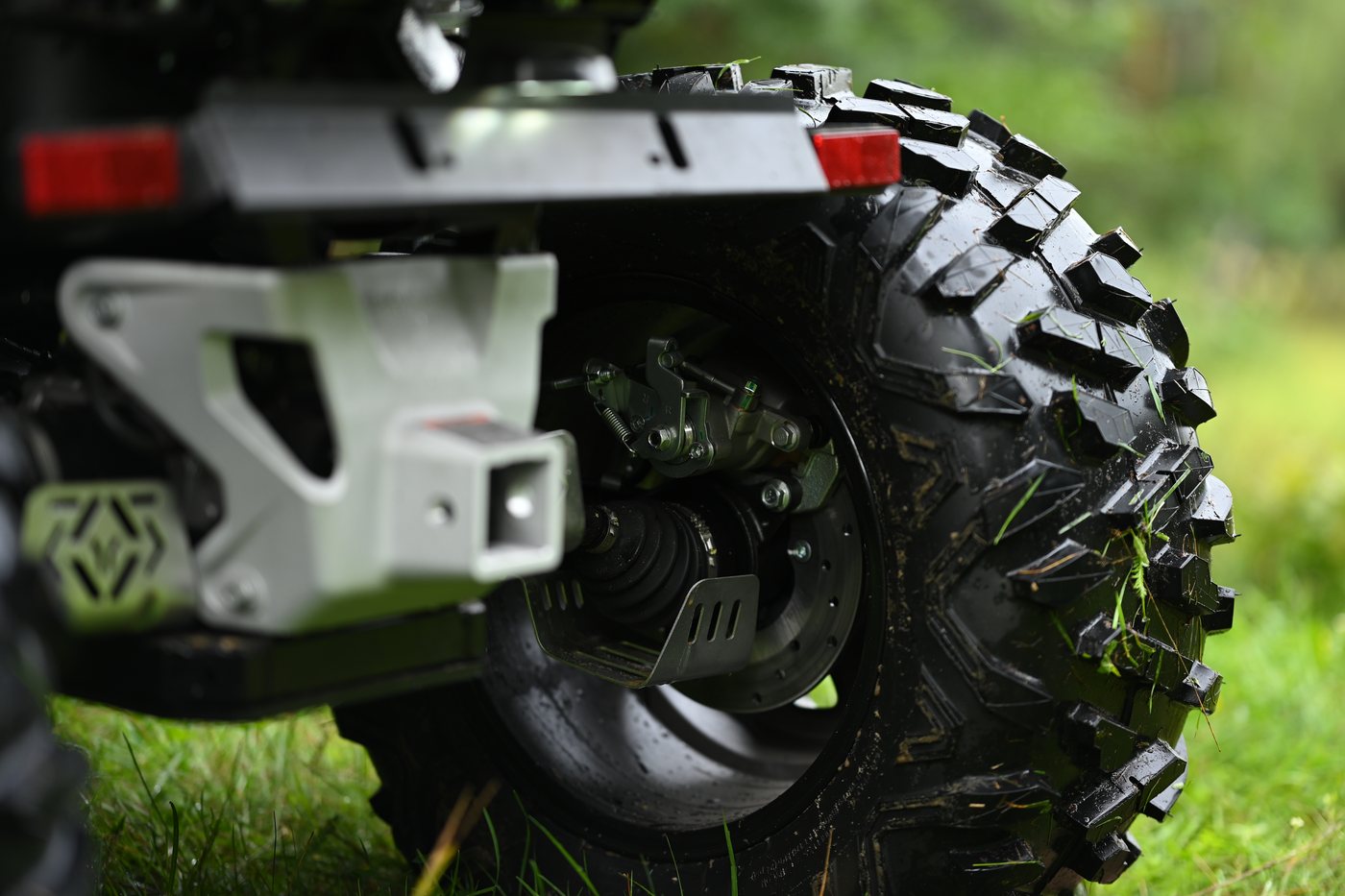

A V-twin BENDA developed in-house, with an intelligent electronic throttle metering it out for quicker response and less fuel burnt getting nowhere. Selectable 2WD/4WD with a diff-lock underneath, 305mm of ground clearance over it, and 900kg on a braked hitch behind — so the machine that got you out there is the one that drags the trailer home.
Features

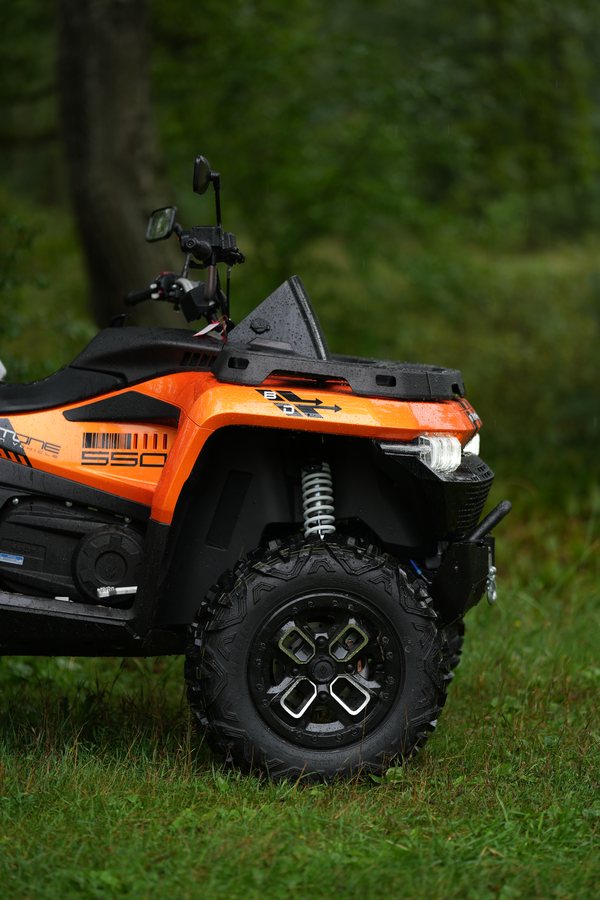

Dual A-arms and 230mm of travel at the front, a double A-arm rear, on a body of chromium-molybdenum steel and forged aluminium that carries 20% more for less weight.
Technical data
Every published figure for the Redstone 550 — engine, dimensions, chassis and brakes — plus the equipment fitted as standard.
Full Redstone 550 specifications
Engine
- Type
- V2, 4-stroke SOHC, liquid-cooled
- Displacement
- 498.4cc
- Max. power
- 48hp
- Max. torque
- 46Nm/5500rpm
- Fuel System/Cooling
- EFI/Liquid
- Transmission
- CVT L/H/N/R/P
- Drive Train
- Selectable 2WD/4WD With Diff-Lock
Suspension
- Front Suspension
- Dual A-arm with sway bar, travel 230mm
- Front Shocks
- Adjustable Gas Shock Absorber
- Rear Suspension
- Double A-arm
- Rear Shocks
- Adjustable Gas Shock Absorber
- Front Tires
- 26×9-14in
- Rear Tires
- 26×11-14in
- Wheels
- 14in. alloy beadlock
- Brakes
- Hydraulic disc brakes front and rear, ABS
Dimensions
- Length
- 2,165mm
- Width
- 1,245mm
- Height
- 1,260mm
- Wheelbase
- 1,300mm
- Ground Clearance
- 305mm
- Estimated Dry Weight
- 415kg
- Braked Towing Capacity
- 900kg
- Fuel Tank Capacity
- 30L
- Seats
- 1
- Seat Height
- 950mm
Standard equipment
Brakes
- Brakes: Hydraulic disc brakes front and rear, ABS
Suspension & chassis
- Front Suspension: Dual A-arm with sway bar, travel 230mm
- Rear Suspension: Double A-arm
- Front Shocks: Adjustable Gas Shock Absorber
- Rear Shocks: Adjustable Gas Shock Absorber
Wheels & tyres
- Front Tires: 26×9-14in
- Rear Tires: 26×11-14in
- Wheels: 14in. alloy beadlock
Drivetrain
- Transmission: CVT L/H/N/R/P
- Drive Train: Selectable 2WD/4WD With Diff-Lock
- Fuel System/Cooling: EFI/Liquid
Standard features
- Class-leading Power: V-Twin engine developed in-house that produces an industry-leading 48hp. Paired with an intelligent electronic throttle, it ensures a smooth ride with precise control, quicker response and improved efficiency.
- High-strength, Lightweight Body: High strength chromium-molybdenum steel and forged aluminium provides 20% more load-bearing capacity while decreasing the weight. Increased rigidity, improved safety and handling performance.

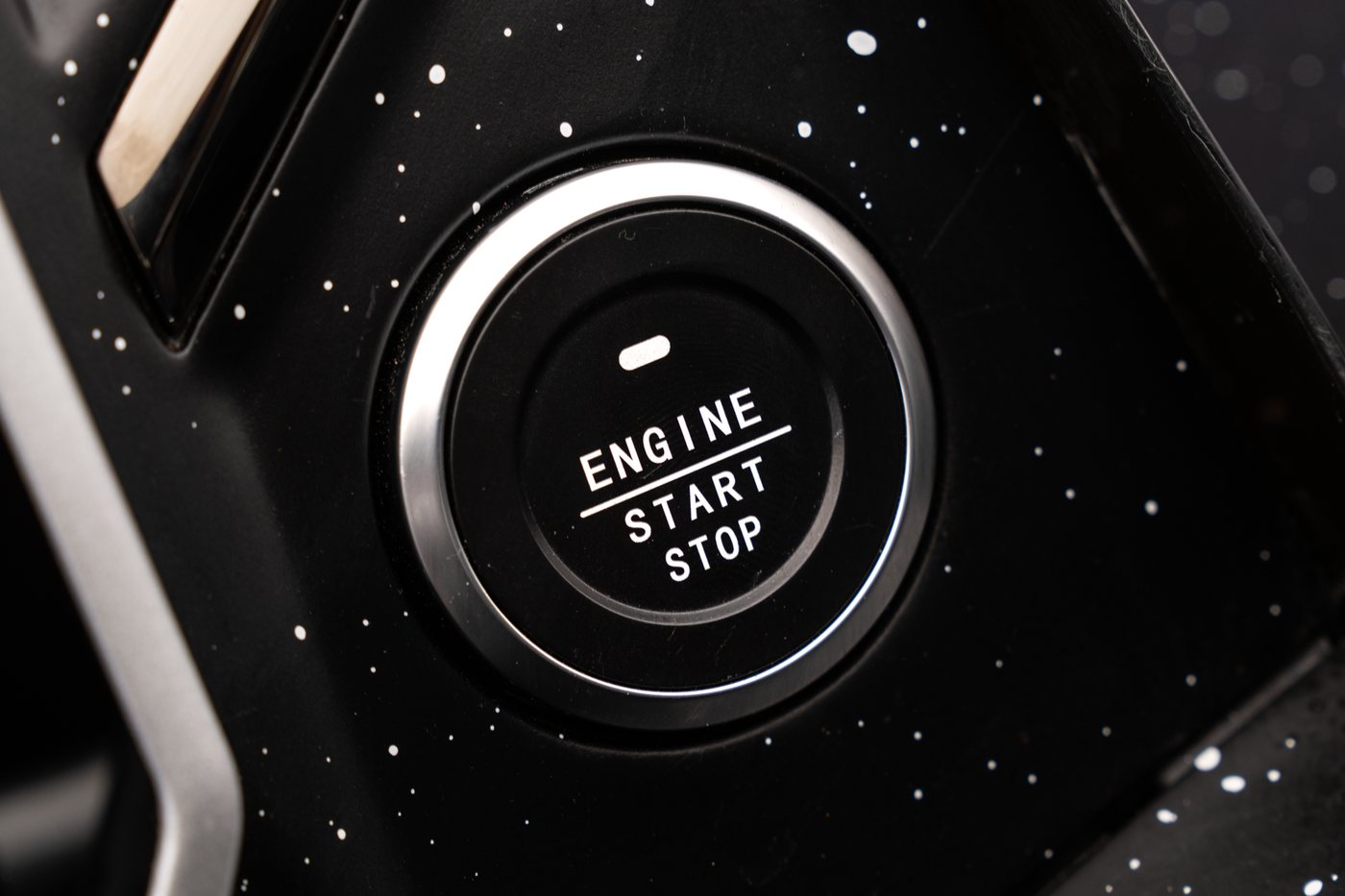

- NFC Key Card Start: Innovative key card with NFC start - Easily start your Redstone 550 using the NFC key card - a first in the ATV segment.

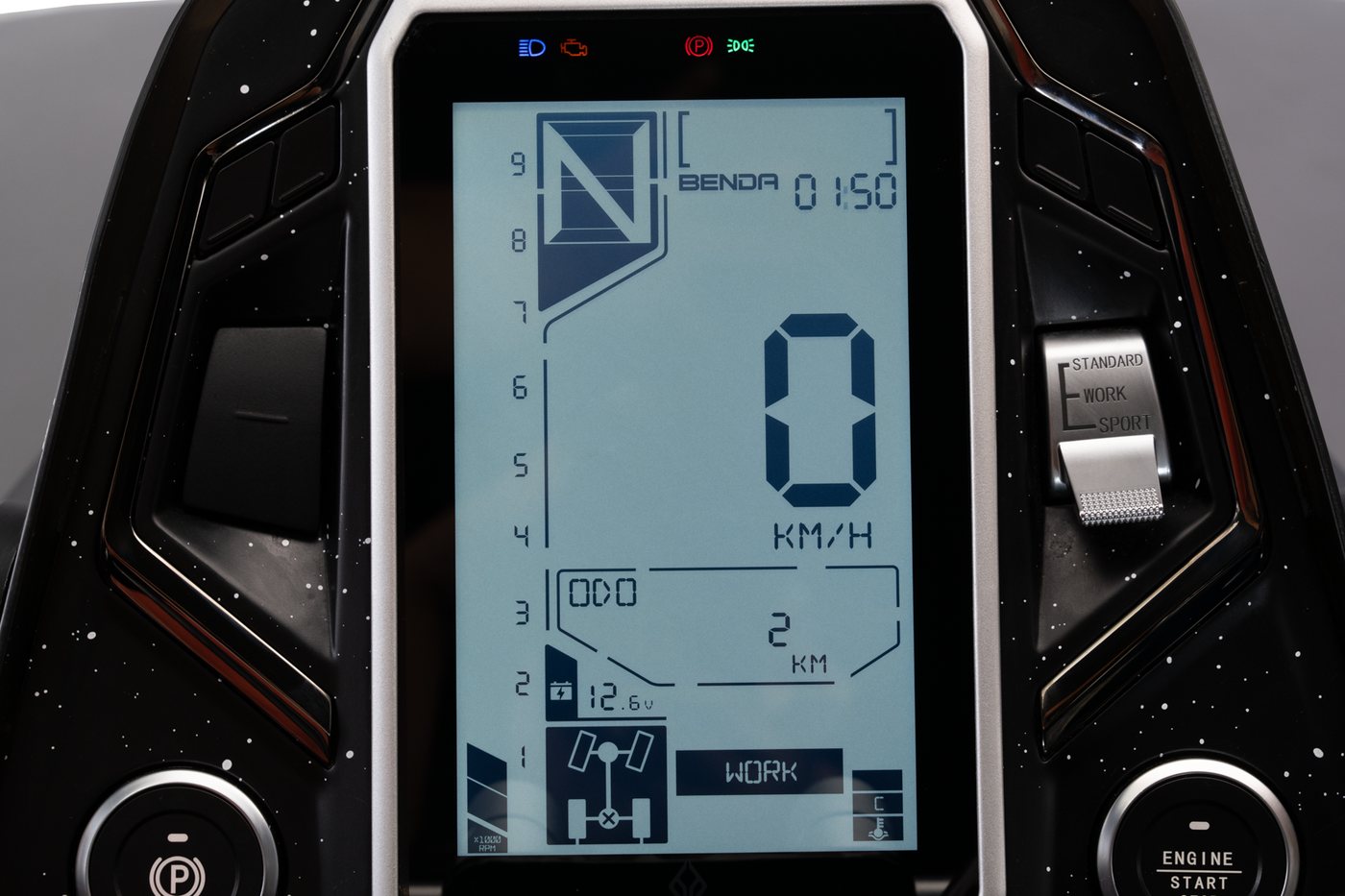

- Digital Cockpit with Drive Modes: Clearly and easily see all your vital information on your large colour digital dashboard, and switch between Standard, Work and Sport drive modes.

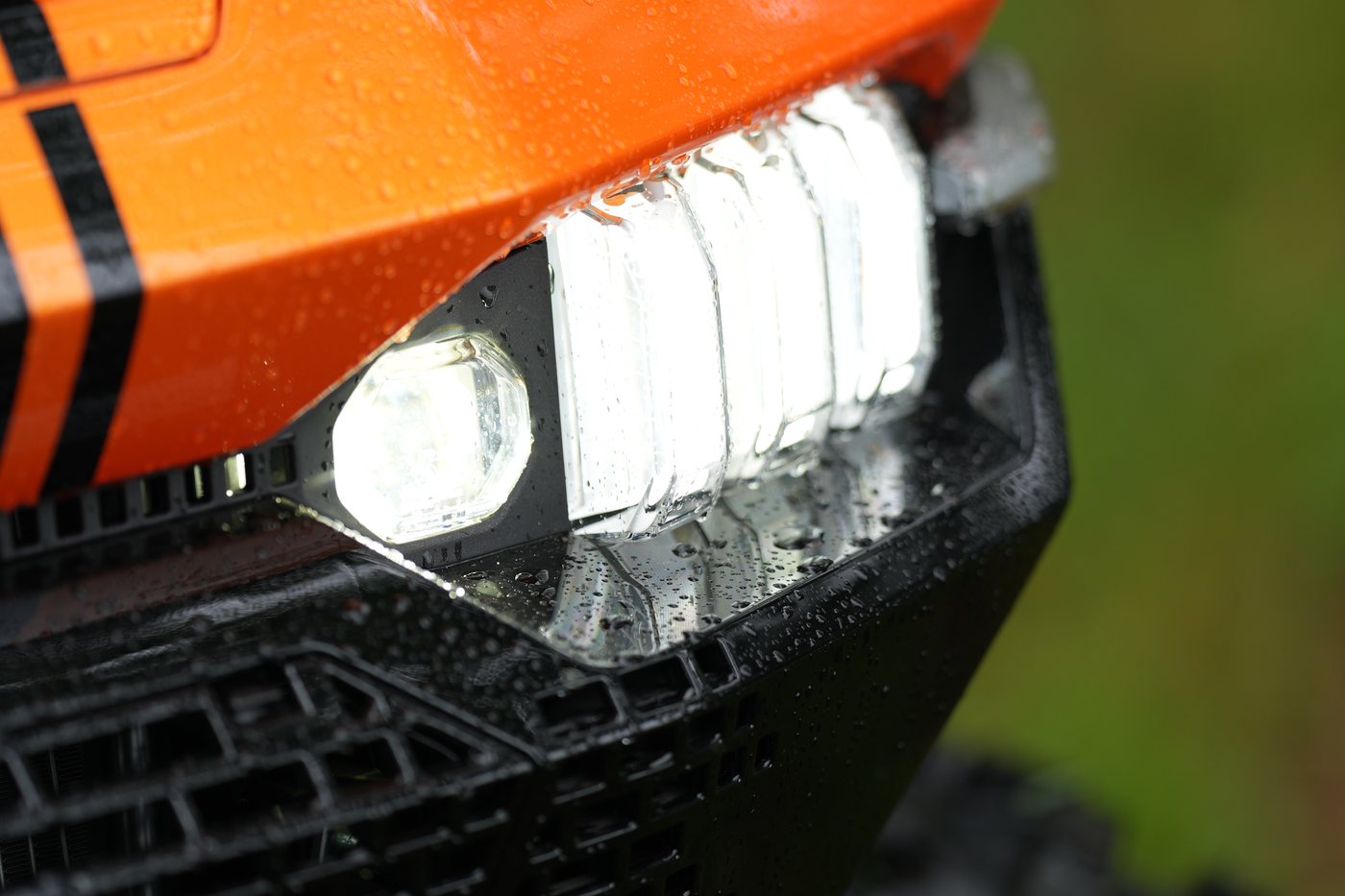

- Avant-garde Lights: Automotive-grade matrix LED headlights mean the fun doesn't stop after sunset. Light up the road ahead with brilliantly bright and efficient lights.
